EXCAVATOR ZX65A

Serial Number : JH7806507L01A7022

AVAILABLE NOW : Kraluv Dvur (CZ)

Kubota V2607 engine 700mm bucket with teeth A/C H/L speed Auxiliary hydraulic Pipeline Two year warranty

Select Additional Options:

  • Extended Warranty

    Extended Warranty

    Close
    It is possible to extend the 2 years warranty, adding additional years. Check the FAQ for more information about the warranty extension.
    3 years or 3000 hours(+$1,119.00)
    Select Click to Deselect
    4 years or 4000 hours(+$1,866.00)
    Select Click to Deselect
  • Machinery
    Accessories

    Machinery
    Accessories

    Close
    420 mm Bucket with Teeth (+$726.00)
    Select Click to Deselect
    1200 mm Clean Bucket (+$1,250.00)
    Select Click to Deselect
    Hydraulic Breaker LP263 (+$2,477.20)
    Select Click to Deselect
    Moil/Pyramid Tool 68 mm (+$105.00)
    Select Click to Deselect

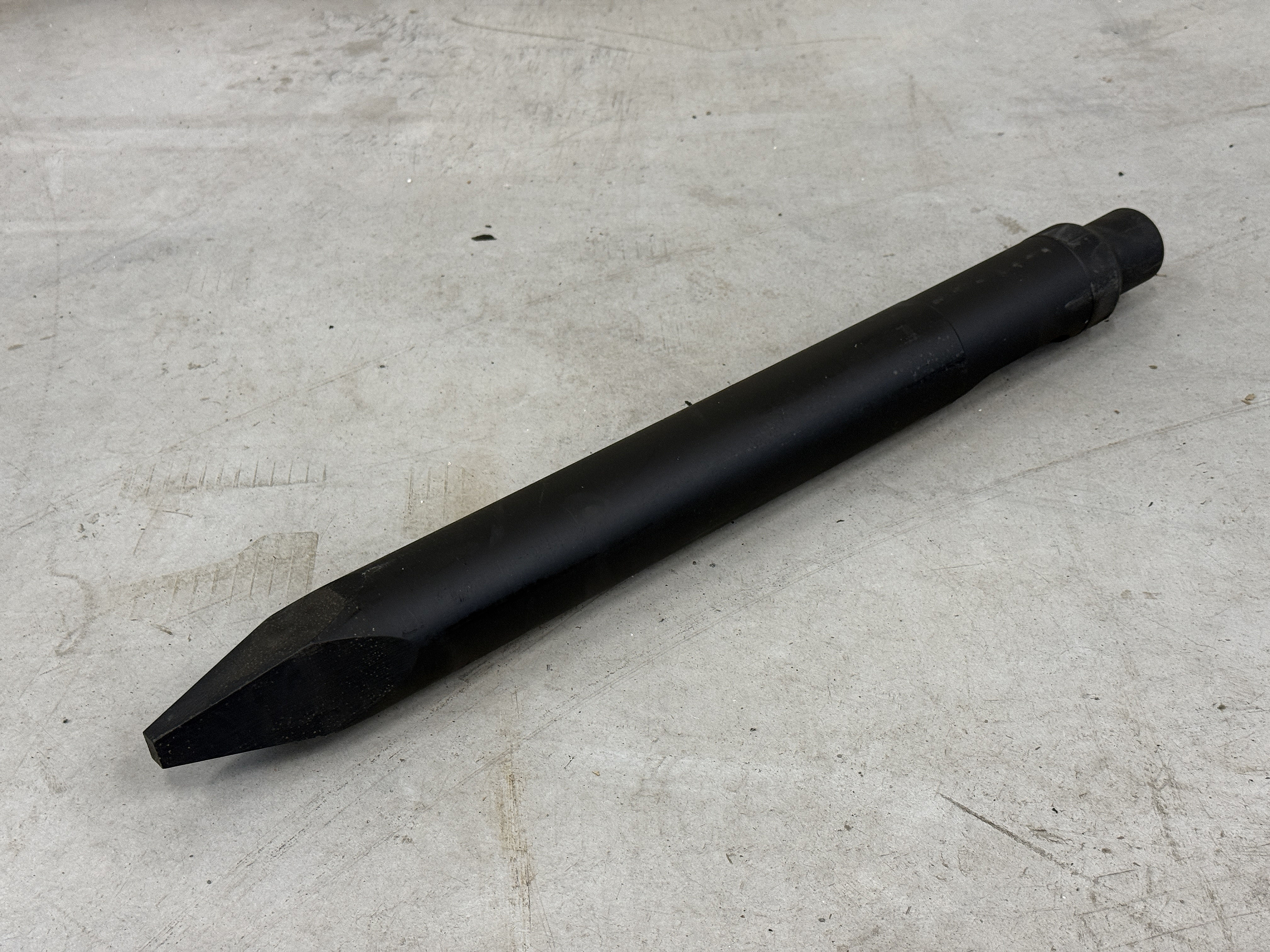

    Cone Tool 68 mm (+$120.00)
    Select Click to Deselect

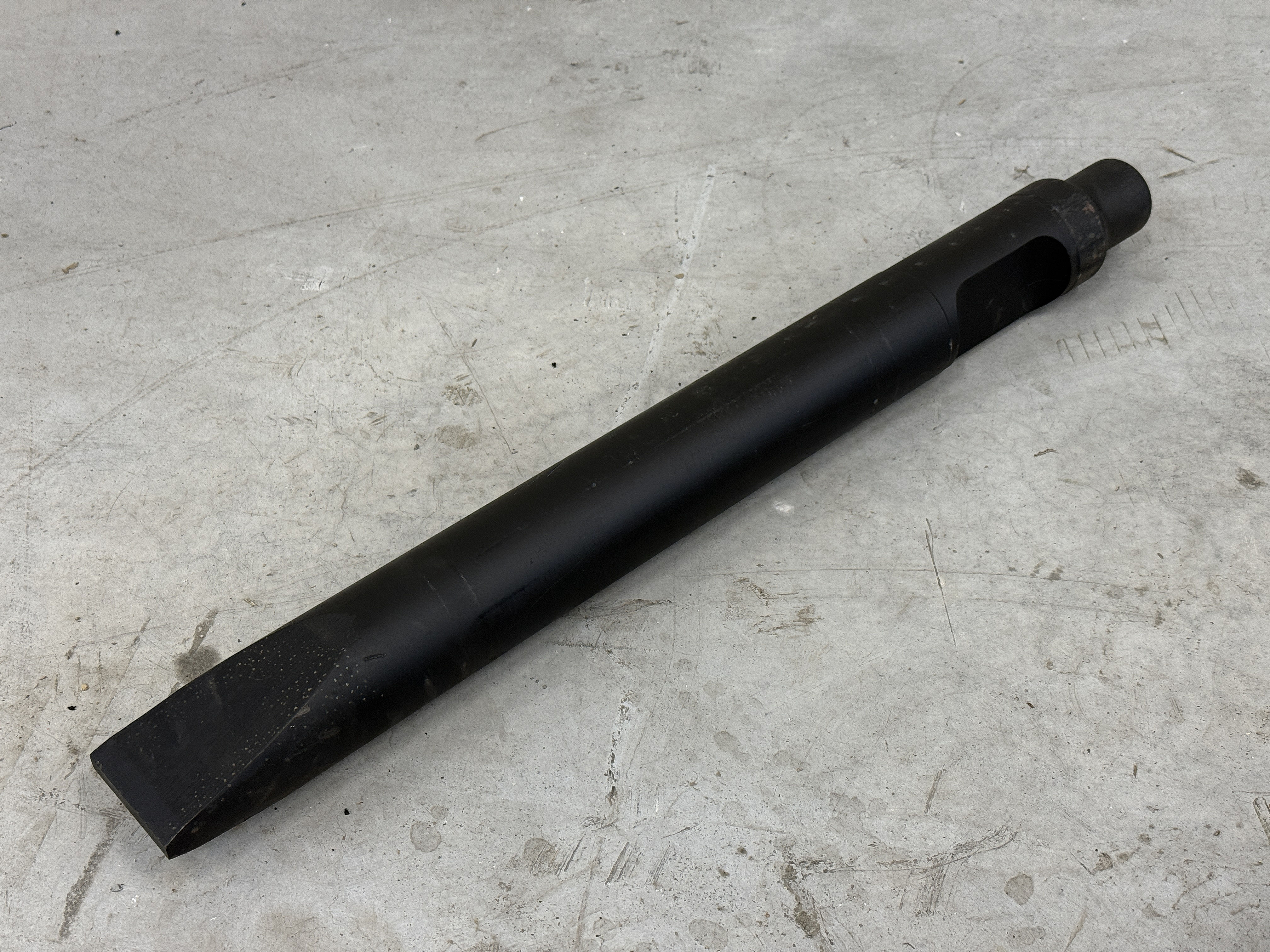

    Chisel Tool 68 mm (+$120.00)
    Select Click to Deselect
    Couple Hydraulic Hoses for tilt bucket (ZA20A - ZA38A) (+$104.00)
    Select Click to Deselect
    Tilt Rotator with quick hitch (+$4,600.00)
    Select Click to Deselect
    550 mm Wide Track Shoes for ZX65A Excavator (+$1,680.00)
    Select Click to Deselect
    Save Settings

The ZX65A is an excellent hydraulic excavator with an operative weight of 6350 kg (around 4.5 tons) and with a max Digging Depth over 4,1 mt. The machine comes with a 700 mm Standard Bucket, Double Travel Speed and Auxiliary Hydraulic Pipeline (to use for example an Hydraulic Hammer) as standard.

The ZX65A is powered by a reliable and low fuel consumption Kubota V2607 Euro V engine in combination with top notch Hydraulic Components. The Zaox Load Sensing System provide a precise control of different execution elements, good controllability and high working efficiency.

The machine has plenty of power, it is fast, reliable and an enviable quality/price ratio.

Your configuration

Total Price
$37,565.33 (≈$37,565.33)
EXCAVATOR ZX65A
Serial Number :JH7806507L01A7022 ($39,915.33)

Factory Options:
Quick Hitch Aux Pipeline : + $600.00
Second Aux. Pipeline : + $1,750.00

Total Price

$39,915.33

Reserved
Discount : 15.00 % OFF
(Sticker Price : $44,194.50 )

Discount is not applied on Factory Options and Accessories.
All prices are without VAT

Submit the order is without obligation and it is not binding!

One of our sales manager will contact you by message or telephone to discuss your possible purchase in the next 48 hours.

Specification 2 Image
Machinery Size
(mm) Total Length 5940
(mm) Total Width 1880
(kg) Machine Weight (with all fluids) 6275
(mm) Cabin Height 2600
(mm) Axle Base 1990
(mm) Wheel (track) Distance 1480
(mm) Minimum Ground Clearance 353
(mm) Tail Swing Radius 1689
Tech. Specifications
(㎡/mm) Standard Bucket Capacity/Length 0.21/700
(rmp) Swing Speed 1-11
(°) Gradeability 35
(KN) Max. Bucket Digging Force 48
(KN) Max. Arm Digging Force 35
Engine Model KUBOTA V2706
(Kw(HP)/rpm) Power/Revolution speed 42.4[56.8]/2200
(MPa) System Pressure 28
(L) Fuel Tank Capacity 87
(L) Hydraulic Circuit Capacity 100
(L) Cooling Circuit Capacity 18
(L) Engine Oil Capacity 12
(m³) Bucket capacity 0.21
Working Range
(mm) Max. Digging Height 5499
(mm) Max. Dumping Height 3845
(mm) Max. Digging Depth 3808
(mm) Max. Vertical Digging Depth 2983
(mm) Max. Digging Radius 6128
(mm) Max. Swing Radius 2607
(mm) MAx. Dozer Blade Lifting Distance 376
(mm) MAx. Dozer Blade Cutting Distance 474
Machinery Size
Total Length
(mm) 5940
Total Width
(mm) 1880
Machine Weight (with all fluids)
(kg) 6275
Cabin Height
(mm) 2600
Axle Base
(mm) 1990
Wheel (track) Distance
(mm) 1480
Minimum Ground Clearance
(mm) 353
Tail Swing Radius
(mm) 1689
Tech. Specifications
Standard Bucket Capacity/Length
(㎡/mm) 0.21/700
Swing Speed
(rmp) 1-11
Gradeability
(°) 35
Max. Bucket Digging Force
(KN) 48
Max. Arm Digging Force
(KN) 35
Engine Model
KUBOTA V2706
Power/Revolution speed
(Kw(HP)/rpm) 42.4[56.8]/2200
System Pressure
(MPa) 28
Fuel Tank Capacity
(L) 87
Hydraulic Circuit Capacity
(L) 100
Cooling Circuit Capacity
(L) 18
Engine Oil Capacity
(L) 12
Bucket capacity
(m³) 0.21
Working Range
Max. Digging Height
(mm) 5499
Max. Dumping Height
(mm) 3845
Max. Digging Depth
(mm) 3808
Max. Vertical Digging Depth
(mm) 2983
Max. Digging Radius
(mm) 6128
Max. Swing Radius
(mm) 2607
MAx. Dozer Blade Lifting Distance
(mm) 376
MAx. Dozer Blade Cutting Distance
(mm) 474
