MINI SKID LOADER ZS12

Serial Number : 20241031

AVAILABLE NOW : Kraluv Dvur (CZ)

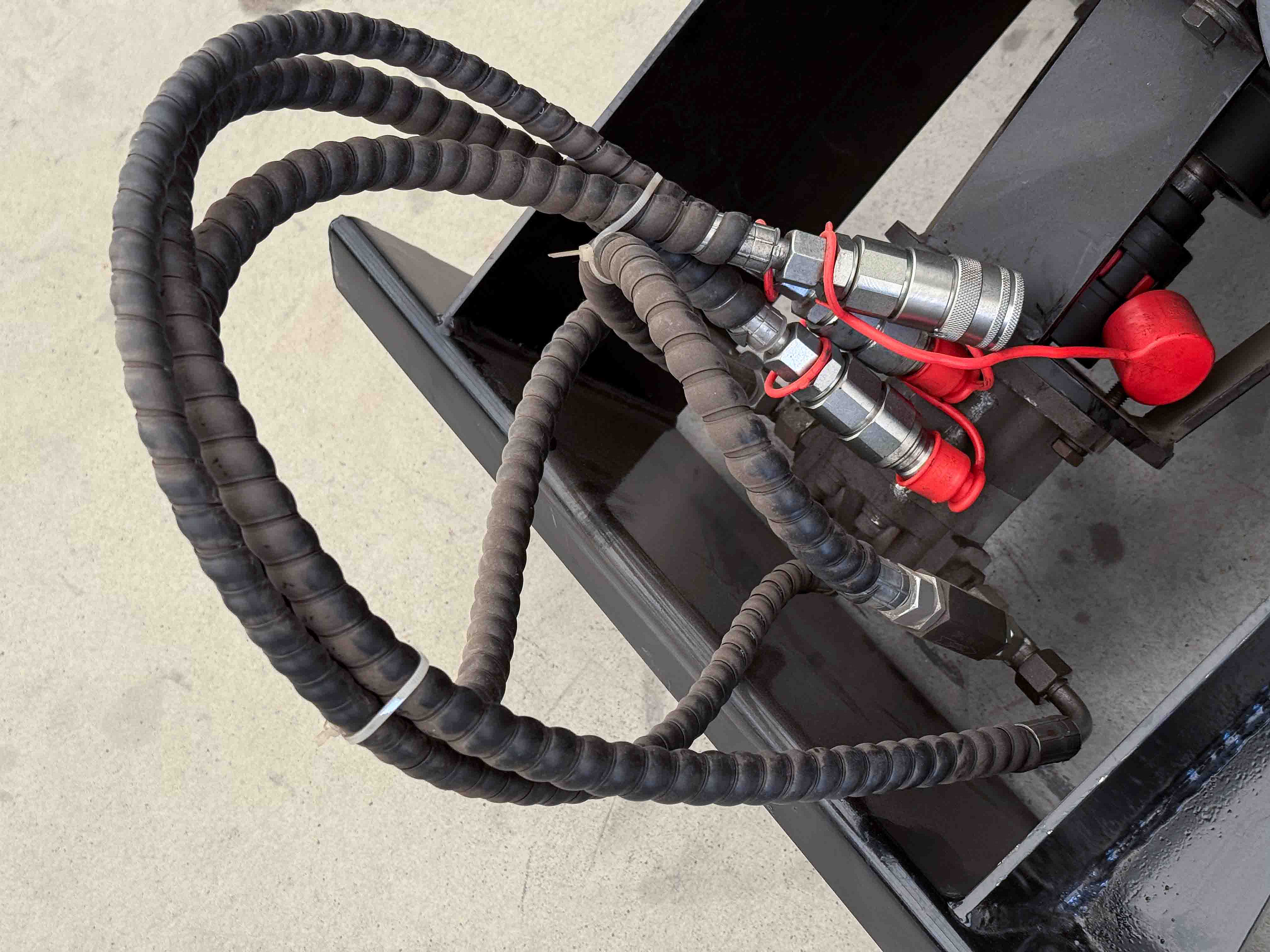

Briggs & Stratton Gasoline Engine Rubber Truck Auxiliary hydraulic Pipeline Two year warranty Hydraulic Transmission

Select Additional Options:

Extended Warranty

Extended Warranty
Close

It is possible to extend the 2 years warranty, adding additional years. Check the FAQ for more information about the warranty extension.

3 years or 3000 hours(+$250.00)
Select Click to Deselect

4 years or 4000 hours(+$380.00)
Select Click to Deselect

5 years or 5000 hours(+$520.00)
Select Click to Deselect
Machinery
Accessories

Machinery
Accessories
Close

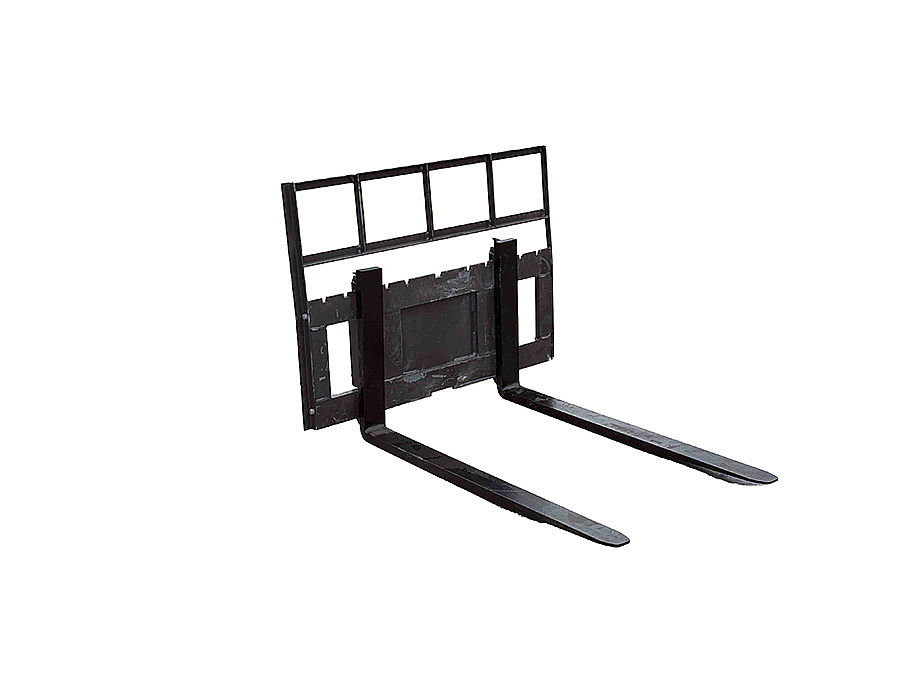

Pallet Forks (+$428.40)
Select Click to Deselect

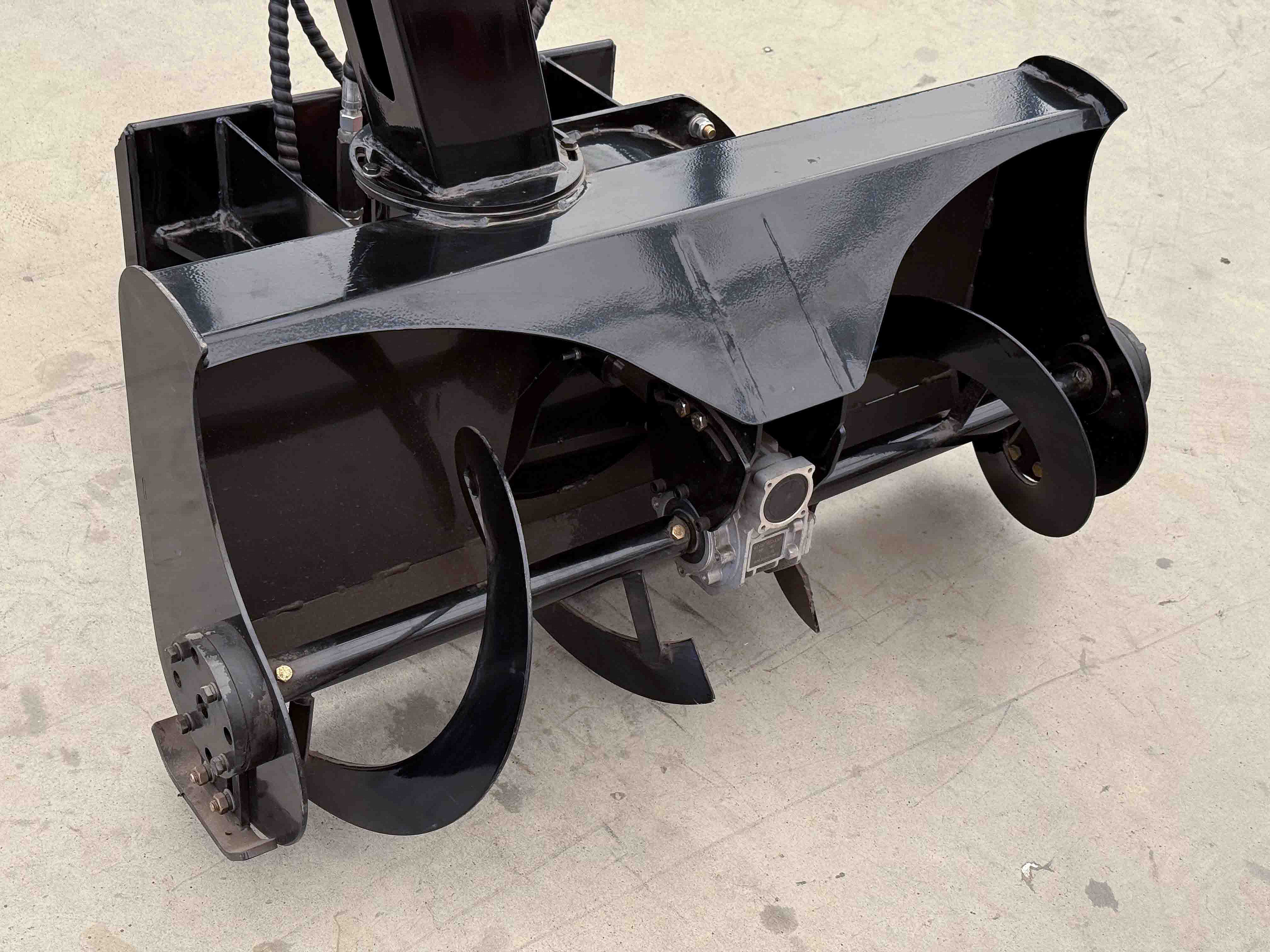

Snow Blower (+$2,100.00)
Select Click to Deselect

Save Settings

With a maximum lift height of 2178mm and an unload height of 1395mm, this machine is highly agile and efficient. Its 18.2KW engine delivers strong performance, complemented by a stable, reliable hydraulic system with noise levels at or below 90dB. Ideal for construction sites or farms, it weighs 1185kg, moves at 6km/h, and is a versatile, dependable work partner.

Your configuration

MINI SKID LOADER ZS12
Serial Number :20241031 ($8,976.80)

Factory Options:
High Flow Pump : + $300.00

Total Price

$8,976.80

Reserved

Discount : 12.00 % OFF
(Sticker Price : $9,860.00 )

Discount is not applied on Factory Options and Accessories.
All prices are without VAT

Submit the order is without obligation and it is not binding!

One of our sales manager will contact you by message or telephone to discuss your possible purchase in the next 48 hours.

Machinery Size
(mm)	Total Length	2400
(mm)	Total Width	835
(mm)	Track Width	830
(kg)	Machine Weight (with all fluids)	1185
(mm)	Overall Operating Height	1260
(mm)	Overall Length with Bucket	2400
(mm)	Width	830
(mm)	Bucket Width	835
Tech. Specifications
(㎡/mm)	Standard Bucket Capacity/Length	0.12/835
(°)	Gradeability	30
	Engine Model	Briggs&Stratton 3867 (Gasoline)
(Kw(HP)/rpm)	Power/Revolution speed	17.2[23]/3600
(MPa)	System Pressure	20
(km/h）	Max Speed	6
	Engine Model	Briggs&Stratton
Working Range
(mm)	Dumping height	1395
(°)	Dumping angle at maximum height	36
(mm)	Maximum Dumping Distance from Frame	620
(°)	Rollback of Bucket on Ground	14
(°)	Rollback of Bucket at Full Height	43

Machinery Size
Total Length
(mm)		2400
Total Width
(mm)		835
Track Width
(mm)		830
Machine Weight (with all fluids)
(kg)		1185
Overall Operating Height
(mm)		1260
Overall Length with Bucket
(mm)		2400
Width
(mm)		830
Bucket Width
(mm)		835
Tech. Specifications
Standard Bucket Capacity/Length
(㎡/mm)		0.12/835
Gradeability
(°)		30
Engine Model
		Briggs&Stratton 3867 (Gasoline)
Power/Revolution speed
(Kw(HP)/rpm)		17.2[23]/3600
System Pressure
(MPa)		20
Max Speed
(km/h）		6
Engine Model
		Briggs&Stratton
Working Range
Dumping height
(mm)		1395
Dumping angle at maximum height
(°)		36
Maximum Dumping Distance from Frame
(mm)		620
Rollback of Bucket on Ground
(°)		14
Rollback of Bucket at Full Height
(°)		43
